- Place of Origin: Shandong, China (Mainland)
- Brand Name: yidaneng
- Model Number: YDNW-40

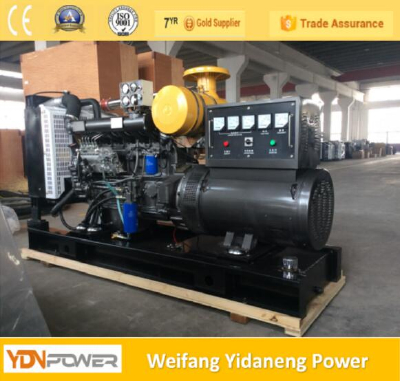

50kva Ricardo diesel generator price
Main Specification
Specifications: |
1.Weifang ricardo diesel generator chooses the domestic famous brand Ricardo series diesel engine as dynamic force which adopts advanced technology. |
2.With the importing of technology of Ricardo Company power from 6.5kw to 500kw. |
3.Weifang ricardo diesel generator adopted 100% cooper brushless alternator brand. |
4.Containing with 8-24 hours fuel tank, automatic transfer switch,and adopting water cooling technology for keeping running efficiency. |
5.Weifang ricardo diesel generator set is widely used as major or back up power supply in fieldwork, high building, supermarket, factory, oil field, high road, harbor countryside and so on. |
DETAILED PARAMETERS | ||
Generator | Genset Model | YDNW-40 |
Rated Frequency | 50HZ | |
Power Factor | 0.8 | |
Rated Voltage | 400/230V | |
Rated Power (KW/KVA) | 40/50 | |
Standby Power (KW/KVA) | 44/55 | |
Phase/Wire | 3Ph, 4Wr | |
Overall Size (mm) | 1850×750×1200 | |
Weight (kg) | 810 | |
Diesel Engine | Model | 4105D |
Type | Water-cooled, inline, 4-stroke, direct injection | |
Rated Power (kw) | 44 | |
Intake Type | Natural | |
No. of Cylinder | 4.L | |
Bore×Stroke (mm) | 105×125 | |
Piston Speed (m/s) | 6.25 | |
Compression Ratio | 17:01 | |
Mechanical Governor Rated | ≤5% | |
Electronical Governor Rated | ≤1% | |
Noise Level (dBA) | ≤95 | |
Exhaust Temperature (℃) | ≤600 | |
Lube Oil Capacity (L) | 12 | |
Rated Fuel Consumption (L/h) | 11.55 | |
Displacement (L) | 4.33 | |
Alternator | Model | TFW2-40 |
Rated Power (KW/KVA) | 40/50 | |
Power Efficiency | 87% | |
Voltage Regulation | ≤±1 | |
Excitation Type | Brushless | |
Insulation Class | H | |
Control System | Model | Smartgen HGM 6110 |
Working Voltage | DC8.0V to DC35.0V, continuous | |
Overall Dimensions | 197 mm x 152 mm x 47mm | |
Panel Cutout | 186mm x 141mm | |
Working Condition | Temperature: (-25~70)ºC; Humidity: (20~90)% | |
Weight | 0.56kg |
