Product Details
- Place of Origin: Shandong, China (Mainland)
- Brand Name: yidaneng
- Model Number: YDN-40

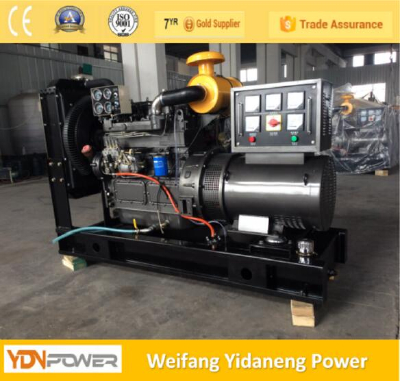

50kva Ricardo diesel generator price
Main Specification
Specifications: |
1.Weifang ricardo diesel generator chooses the domestic famous brand Ricardo series diesel engine as dynamic force which adopts advanced technology. |
| 2.With the importing of technology of Ricardo Company power from 6.5kw to 500kw. |
| 3.Weifang ricardo diesel generator adopted 100% cooper brushless alternator brand. |
| 4.Containing with 8-24 hours fuel tank, automatic transfer switch,and adopting water cooling technology for keeping running efficiency. |
| 5.Weifang ricardo diesel generator set is widely used as major or back up power supply in fieldwork, high building, supermarket, factory, oil field, high road, harbor countryside and so on. |
| DETAILED PARAMETERS | ||
| Generator | Genset Model | YDNW-40 |
| Rated Frequency | 50HZ | |
| Power Factor | 0.8 | |
| Rated Voltage | 400/230V | |
| Rated Power (KW/KVA) | 40/50 | |
| Standby Power (KW/KVA) | 44/55 | |
| Phase/Wire | 3Ph, 4Wr | |
| Overall Size (mm) | 1850×750×1200 | |
| Weight (kg) | 810 | |
| Diesel Engine | Model | 4105D |
| Type | Water-cooled, inline, 4-stroke, direct injection | |
| Rated Power (kw) | 44 | |
| Intake Type | Natural | |
| No. of Cylinder | 4.L | |
| Bore×Stroke (mm) | 105×125 | |
| Piston Speed (m/s) | 6.25 | |
| Compression Ratio | 17:01 | |
| Mechanical Governor Rated | ≤5% | |
| Electronical Governor Rated | ≤1% | |
| Noise Level (dBA) | ≤95 | |
| Exhaust Temperature (℃) | ≤600 | |
| Lube Oil Capacity (L) | 12 | |
| Rated Fuel Consumption (L/h) | 11.55 | |
| Displacement (L) | 4.33 | |
| Alternator | Model | TFW2-40 |
| Rated Power (KW/KVA) | 40/50 | |
| Power Efficiency | 87% | |
| Voltage Regulation | ≤±1 | |
| Excitation Type | Brushless | |
| Insulation Class | H | |
| Control System | Model | Smartgen HGM 6110 |
| Working Voltage | DC8.0V to DC35.0V, continuous | |
| Overall Dimensions | 197 mm x 152 mm x 47mm | |
| Panel Cutout | 186mm x 141mm | |
| Working Condition | Temperature: (-25~70)ºC; Humidity: (20~90)% | |
| Weight | 0.56kg | |
